Heat-shrinkable PVDC film for food packaging Krehalon Film
Automated filling and clipping machine:KAP

KAP-3000
KAP-3000

Krehalon Film is a monolayer film made from polyvinylidene chloride, used mainly as a casing film for sausages made from fish, pork and chicken. Krehalon Film has both oxygen and moisture barrier properties and is sustainable for high temperature and pressure sterilization. This makes it ideally suited for the manufacture of shelf-stable sausages, which can be transported and stored at room temperature.
Kureha Auto Packer (KAP) is an automated filling and clipping machine designed for mass production of sausages with Krehalon Film. A broad range of KAP models are available to suit various contents, product sizes and applications, helping to enhance productivity.
Based on technological expertise accumulated over more than a half century, Kureha develops material and packaging technologies to meet specialized food packaging needs through a unified value chain that includes filling and packing equipment.

Characteristics

  • Low oxygen permeability, preventing discoloration and flavor deterioration due to oxidation
  • Low water vapor permeability, preventing moisture absorption and loss of content weight
  • Lack of water absorbency, chemical resistance, light resistance
  • Heat-shrink properties allow for attractive product presentation without wrinkles
  • Transparent and glossy, showing off the contents
  • High heat resistance, permitting high temperature sterilization

Material Properties of Krehalon Film

<Barrier Properties>

To meet the needs of various applications, we offer films with a wide range of oxygen transmission rates.
Property Unit Measured Value
(Normalized to 40 μm)
Test Method
(ASTM Standard)
Test Conditions
OTR cm3/m2・day・atm 8–85 D3985 23℃・Dry
WVTR g/m2・day <10 D1249 40℃・90%RH
  • The above data are examples of measured or calculated values and are not guaranteed values.

<Hot Water Shrinkage, Transparency and Gloss>


Property Unit Measured Value Test Method
(ASTM Standard)
Test Conditions
Hot Water
Shrinkage
% MD:17.0–29.5
TD:11.5–26.0
D2732 100℃×3min
Haze % 9.5–11.6 D1003
Gloss GU MD:113–123
TD:119–128
D2457 60°
  • The above data are examples of measurements and are not guaranteed values.

Uses/Applications

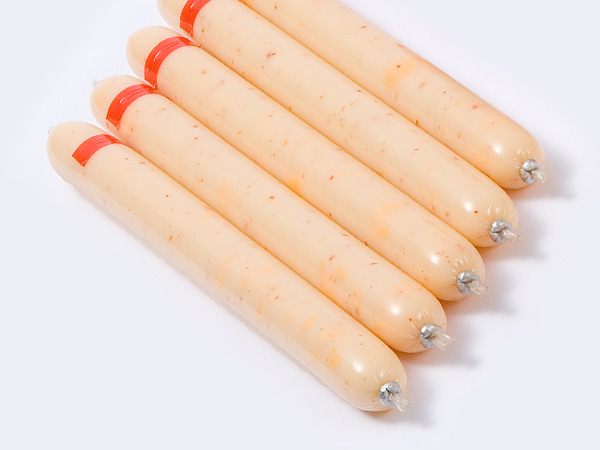

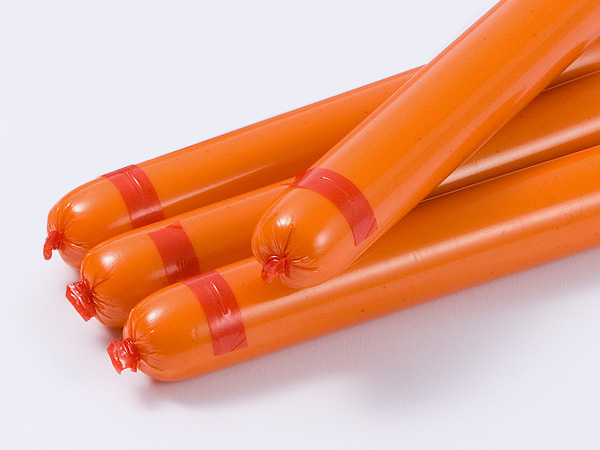

  • Food packaging for fish sausages, meat sausages and cheese
  • Uses/Applications
  • Uses/Applications
  • Uses/Applications
